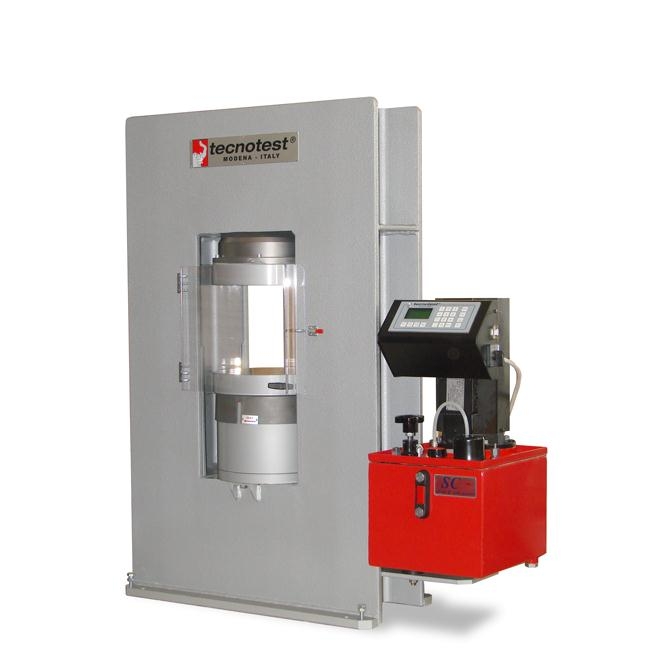

MÁY KIỂM TRA BÊ TÔNG KỸ THUẬT SỐ TỰ ĐỘNG
Model: KP 200/A; KP 200/L; KP 300/L
Hãng sản suất: Tecnotest
Xuất xứ: Italy – G7
|
AUTOMATIC TESTING MACHINE WITH DIGITAL READOUT UNIT
Code: KP 200/L
Standard: BS 1610, BS 1881, EN 12390-4, DIN 51220, DIN 51223
The structures are built using a frame of welded elements of elevated inertia to obtain the necessary rigidity on the three axes. Planes and alignments are accurately machined on the assembled frame to guarantee that the thrust and counter thrust devices are parallel and along correct axes.
This characteristic, together with the hydraulic ram with low-friction gaskets and the ball seating in oil bath, mean that the machine complies to the strictest standards for precision and stability, even if the structure used is simple and economical.
The preset pace rate is actuated by the regulating system in feedback; further automatic mechanisms help make testing very simple and safe. The hydraulic power pack is the? Silent & Cold Power? Type characterised by extremely reduced heat and noise production, thus guaranteeing all day usage.
Pressure is read by an extensometric type pressure transducer which the MONOTRONIC readout unit displays as a load reading.
Safety guard and ram limit switch are standard features.
|
Enbloc welded frame
|
|
SPECIFICATIONS
|
MODELS
|
| |
KP 200/A
|
KP 200/L
|
KP 300/L
|
|
Capacity (kN)
|
2000
|
3000
|
|
Max. vertical span (mm)
|
210
|
340
|
|
Min. vertical span (mm)
|
110 mm with distance piece KR 10
|
|
Max. horizontal span (mm)
|
288
|
325
|
|
Usable ram travel (mm)
|
50
|
|
Testing platens (mm)
|
285
|
|
Distance pieces (supplied as standard)
|
|
Cubes 100 mm
|
YES (1)
|
|
Cubes 150 mm
|
YES
|
with KR 12 + N. 3 KR 10
|
|
Cubes 200 mm
|
YES
|
with KR 12 + N. 2 KR 10
|
|
Cubes 300 mm
|
NO
|
|
Cylinders diameter 100 x 200 mm
|
YES
|
with KR 12 + N. 2 KR 10
|
|
Cylinders diameter 15 x 30 cm - 6 x 12?
|
NO
|
with KR 12
|
|
Cylinders diameter 160 x 320 mm
|
NO
|
YES
|
|
Measuring indicator (strength)
|
Monotronic - digital display - 1 channel
(sensitivity 1: 30.000 points)
|
|
Load sensor
|
pressure transducer (extensometric type)
|
|
Reading range (kN)
|
from 0 to 2000
|
from 0 to 3000
|
|
Measuring range (kN)
|
from 200 to 2000
|
from 300 to 3000
|
|
Divisions (kN)
|
0.1
|
|
Class of the machines
|
1
|
|
Operation
|
220 V, 50 Hz, 1ph - 700 W (2)
|
|
Dimensions frame (cm)
|
102 x 37 x 120
|
105 x 37 x 142
|
111 x 37 x 145
|
|
Dimensions packed frame (cm)
|
132 x 92 x 165
|
|
Weight net/packed (kg)
|
540 / 630
|
585 / 675
|
840 / 930
|
Notes:
1) with distance piece KR 10 (diameter 200 x 50 mm)
2) other voltages available upon request
|
SPECIFICATIONS:
|
 Dimensions: 105x37x142 mm
 Weight: 585 kg
 Power: 220 V, 50 Hz, 1ph - 700 W
|
|
