YES Digital Display

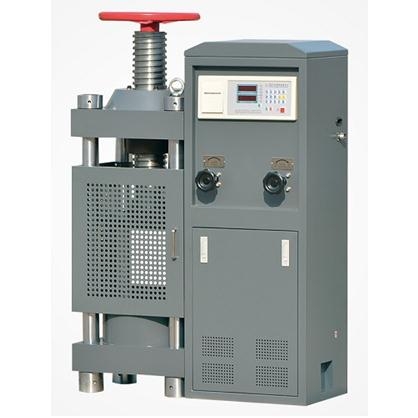

Hydraulic Power Compression Testing Machine
1.Application:
Digital Display Hydraulic Power Compression Testing Machine mainly used for
concrete cement, rock, brick and other building materials compression resist testing.
Widely used in metallurgy, building materials, space flight and aviation, colleges and universities,
R&D institution lines. The test operation and data processing meets standard requirements.
2.Main Specifications:
|
Model |
YES-2000 |
YES-3000 |
|
Basic Parameter |
||
|
Max. Load |
2000 KN (200 TONS) |
3000KN(300TONS) |
|
Load Accuracy |
≤ ±1% |
|
|
Piston Stroke |
50mm |
|
|
Upper Pressure Plates Size |
240*240mm |
265*265mm |
|
Lower Pressure Plates Size |
300*250mm |
360*285mm |
|
Compression Space |
320mm |
340mm |
|
Host Dimension |
900*400*1150 |
1000*500*1500 |
|
Weight |
600 KG |
1500KG |
|
Power |
1.0 KW |
2KW |
|
Power Supply |
AC 380V, 50Hz (Can Be Custom) |
|
|
Printer |
Thermal Micro Printer |
|
|
Printing Paper Size |
Wide 57mm |
|
|
Oil Pump Motor Band |
SIEMENS Motor |
|
|
Test Control System Parameters |
||
|
Range Of Test Force |
10%~100% FS (200 KN~2000 KN) |
10%~100% FS (300 KN~3000 KN) |
|
Force Load Way |
Manual Control Load Way |
|
|
Testing Space Regulating Way |
Manual Ball Screw Adjust |
|
|
Test Date Display |
Dual Row Nixie Tubes For Force and Loading Rate Display |
|
